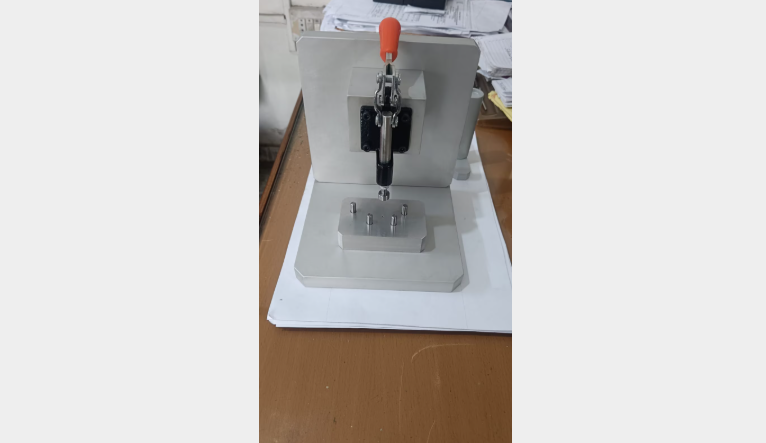

Assembly Fixture
At Meru Precision Industries, we design and manufacture high-accuracy assembly fixtures tailored to meet demanding industrial requirements.
This fixture is engineered to ensure consistent assembly, reduced operation time, and error-free alignment of components during production.
Our assembly fixture is developed using best-in-class engineering practices, backed by years of expertise in gauge design, tool design, and precision manufacturing.

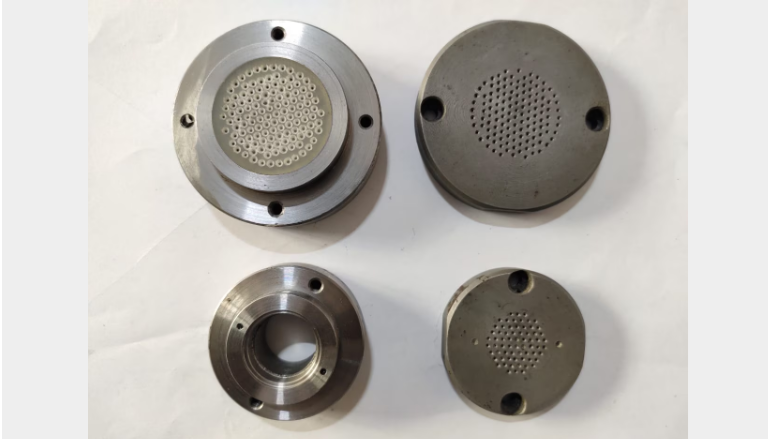

Jigs and Fixtures
Jigs and fixtures are both types of specialized tools used in manufacturing processes, particularly in machining, assembly, and inspection operations.
We are expertized in manufacturing of jigs and fixtures according to our customer requirements.

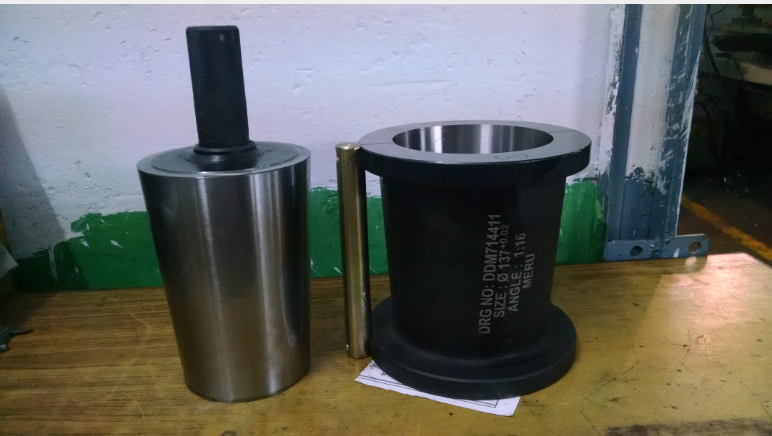

Taper Plug/Ring Gauge
A taper plug gauge is a precision measurement tool used to check the internal taper of a hole or a conical recess. It is designed to ensure that the internal surface of a tapered hole meets specified dimensional requirements. Taper plug gauges are commonly used in industries where precise taper angles are critical, such as in machining, tool and die making, and various manufacturing processes.

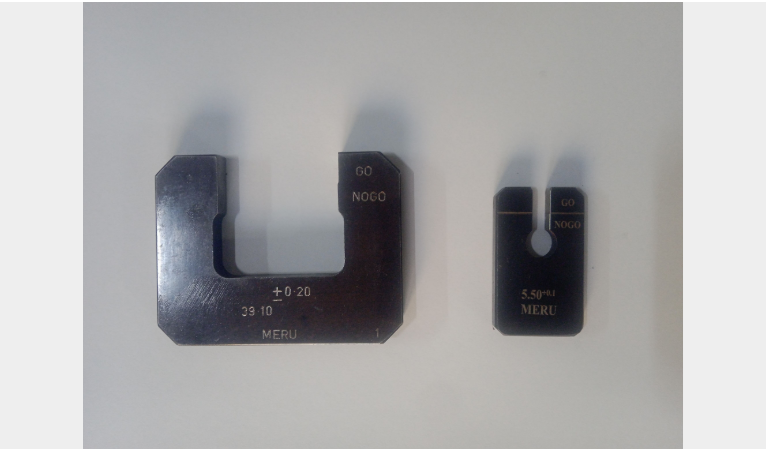

Snap Gauge
A snap gauge is a precision measuring instrument used in manufacturing and quality control processes to quickly and accurately measure the outside diameter of cylindrical objects, typically shafts or similar parts. It’s designed for rapid and repetitive measurements, making it suitable for high-volume production environments. Snap gauges are particularly useful for checking the conformity of machined parts to specified tolerances.

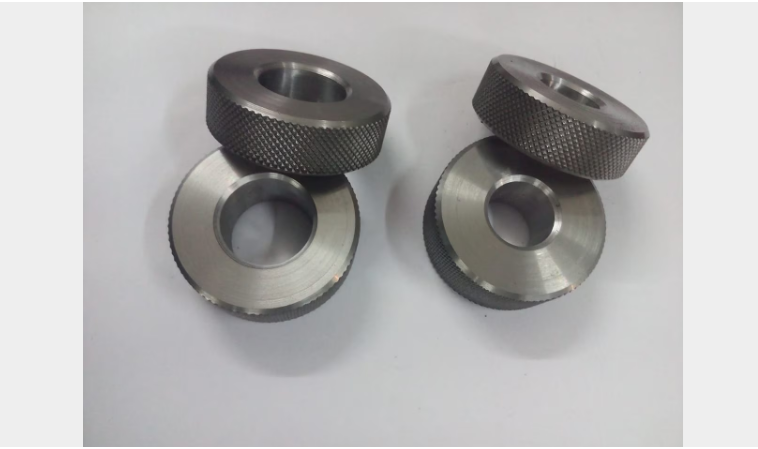

Plain Ring Gauge
A ring gauge is a precision measurement tool used to check the external dimensions of cylindrical objects, such as the outer diameter of a round part or a shaft. Ring gauges are designed to ensure that the diameter of the measured object falls within specified tolerance limits.

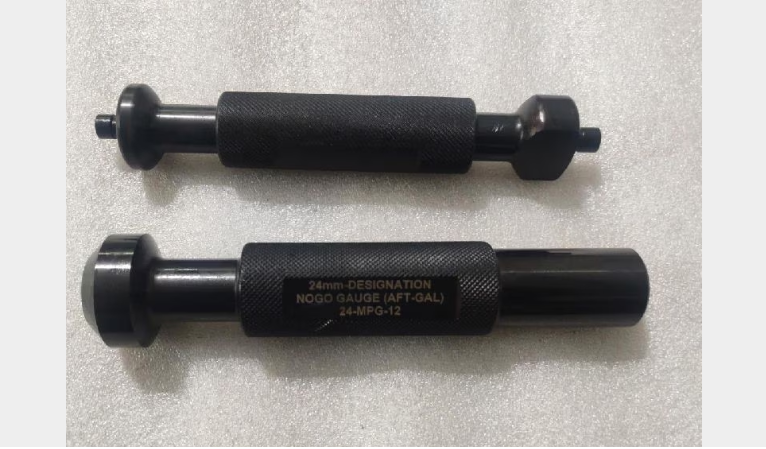

Profile Plug Gauge
A profile plug gauge is a specialized type of gauge used to measure the complex contours, shapes, or profiles of a workpiece. Unlike a simple plug gauge that measures only the diameter of a hole, a profile plug gauge is designed to assess the overall shape and dimensions of a part, especially irregular or intricate features.

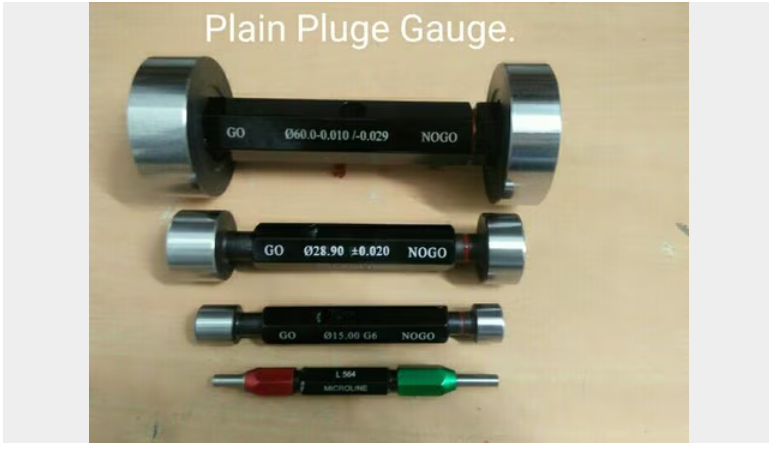

Plain Plug Gauge
A snap gauge is a precision measuring instrument used in manufacturing and quality control processes to quickly and accurately measure the outside diameter of cylindrical objects, typically shafts or similar parts. It’s designed for rapid and repetitive measurements, making it suitable for high-volume production environments. Snap gauges are particularly useful for checking the conformity of machined parts to specified tolerances.

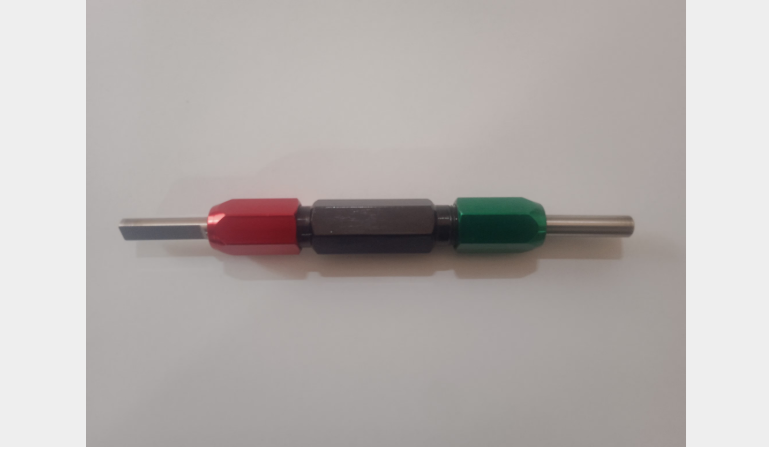

Pin Gauge
A pin gauge, also known as a plug gauge, is a precision instrument used to measure the diameter of holes. It consists of a cylindrical metal rod or pin with a precisely known diameter. These pins are typically made from hardened and ground steel to ensure accuracy and durability.

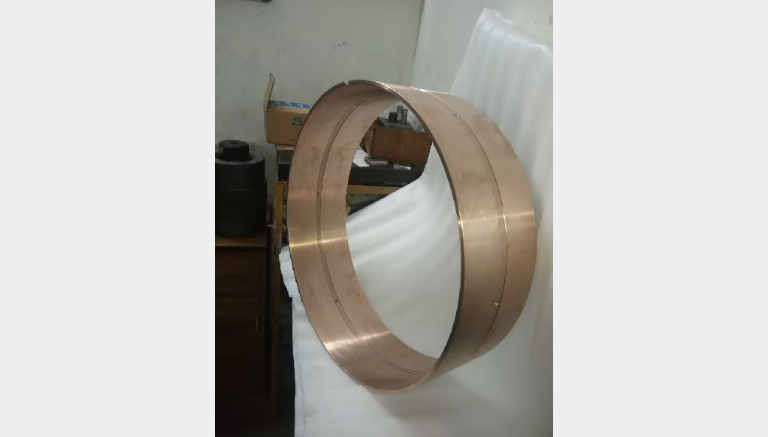

Brass Ring/PB Ring
Description: Used as bearing for Gang Saw Machine(Granite Cutting Machine)
Material Used:
Phosphorous Bronze
Application:
Granite Industry
Plain Plug Gauge
A snap gauge is a precision measuring instrument used in manufacturing and quality control processes to quickly and accurately measure the outside diameter of cylindrical objects, typically shafts or similar parts. It’s designed for rapid and repetitive measurements, making it suitable for high-volume production environments. Snap gauges are particularly useful for checking the conformity of machined parts to specified tolerances.
Pin Gauge
A pin gauge, also known as a plug gauge, is a precision instrument used to measure the diameter of holes. It consists of a cylindrical metal rod or pin with a precisely known diameter. These pins are typically made from hardened and ground steel to ensure accuracy and durability.
Brass Ring/PB Ring
Description: Used as bearing for Gang Saw Machine(Granite Cutting Machine)
Material Used:
Phosphorous Bronze
Application:
Granite Industry

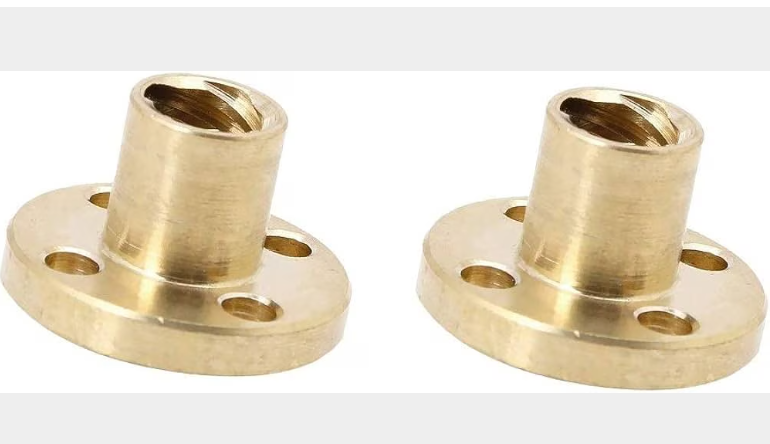

Lead Nut
Lead nuts are mechanical components used with lead screws,both of which are used to convert rotational motion into linear motion.
We specialize in making custom lead nuts according to customer requirements. The customer can send us the drawing or tell us orally what their requirements are. We will produce the drawing accordingly, and after getting confirmation on the drawing, we will produce the sample parts. Once we get approval for sample parts, we will go ahead with production.

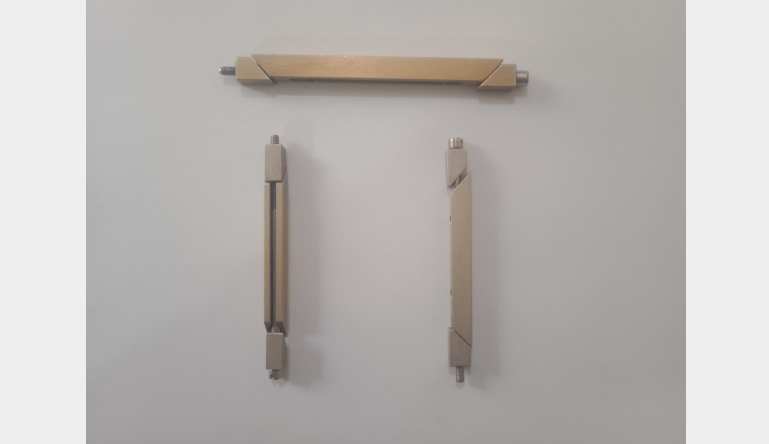

Wedge Lock
Wedge locks are primarily used electronic industries
Here are some of use cases of wedge locks
1)PCB Assembly
2)Enclosure Assembly
3)Rack Mounting.
4)Modular Systems
5)Connectors and Cables

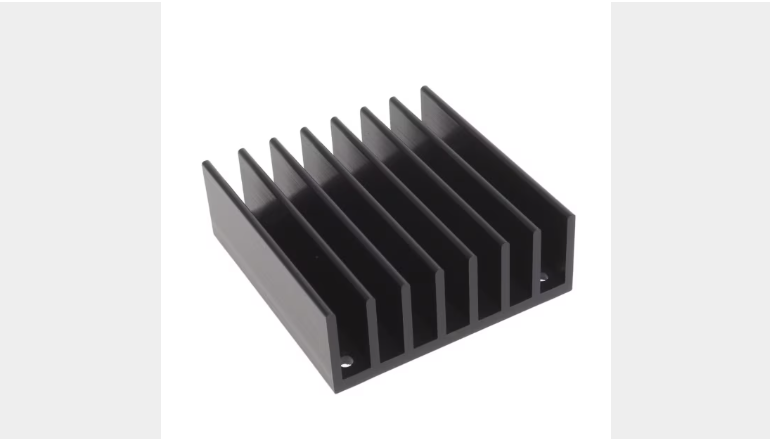

Heat Sink
Heat sinks are integral components in electronic devices, especially those that generate significant amounts of heat during operation, such as CPUs, GPUs, power transistors, and voltage regulators.
Lead Nut
Lead nuts are mechanical components used with lead screws,both of which are used to convert rotational motion into linear motion.
We specialize in making custom lead nuts according to customer requirements. The customer can send us the drawing or tell us orally what their requirements are. We will produce the drawing accordingly, and after getting confirmation on the drawing, we will produce the sample parts. Once we get approval for sample parts, we will go ahead with production.

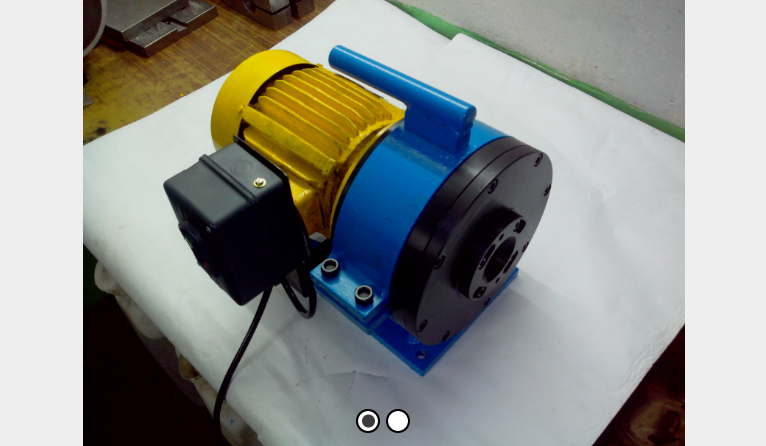

Swaging Machine
Speedometer Cable Swaging Machine:
This machine is having a rotary unit to swage the round end of the cable to square,to drive the speedometer.
The end of the speedometer cable is fed to the rotary swaging machine sleeve, the four carbide jaws moves radially to change the shape of cable end from round to square.The cable size(Square size) is variable.
This is a cold forging operation and doesn’t require any heating.

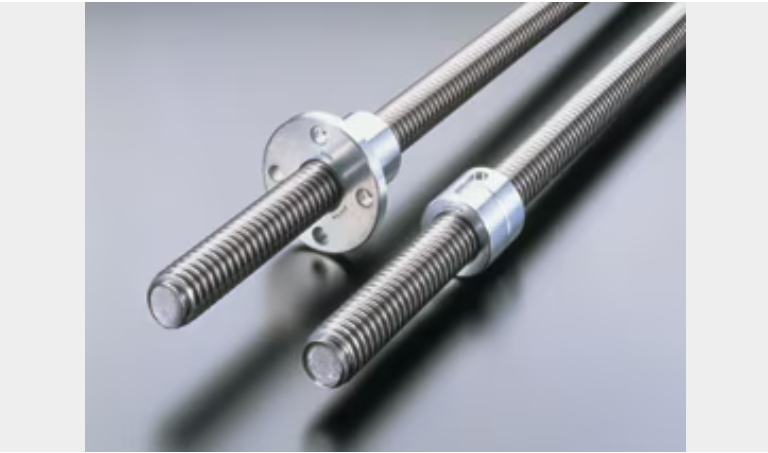

Lead Screw and Nut
A lead screw and nut assembly is a mechanism used to convert rotary motion into linear motion. This combination is commonly employed in various applications, including machinery, tools, and devices where controlled linear movement is required. Here’s an overview of the lead screw and nut.

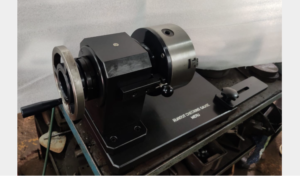

Runout Checking Gauge
Runout Checking Gauge
